Workspace Architecture Guide

Choosing the right workspace architecture is the foundation for every successful HPE GreenLake deployment. As your organization scales, a well-designed workspace hierarchy separates governance from service operations, reduces operational risk, and enables flexible policy enforcement across teams and environments.

Why Workspace Architecture Matters

A well-planned hierarchy delivers clear ownership, safer change windows, constrained blast radius, predictable capacity scaling, and the right balance between service integration (consolidation) and isolation boundaries (separation).

All of these outcomes are strengthened by Identity Governance (centralized SSO, SCIM provisioning, shared directory) applied at the organization parent.

Consolidation vs Separation: Choosing Your Strategy

You choose between consolidating services (for integrated operations) and separating them (for isolation boundaries). Most real deployments blend both.

Applicability: These consolidation and separation principles may apply whether you're designing enterprise member workspaces or MSP tenant workspaces. The decision framework helps you determine when services benefit from shared operational context versus isolation boundaries. For MSP-specific architectural considerations (parent workspace design, tenant enablement, IAM delegation), see the MSP Hierarchy section.

The IT Operations Context

Infrastructure operations optimize for service integration; application platforms often optimize for isolation. Consolidation enables cross-service workflows (Compute Ops + Aruba Networking + OpsRamp). Application development platforms emphasize independent deployment and blast radius containment. Recognize this difference when deciding how aggressively to separate.

When to Consolidate Services into Fewer Workspaces

Use fewer workspaces when:

1. Services integrate operationally (Compute Ops Management + Aruba Networking Central + OpsRamp) and shared dashboards accelerate decisions.
2. A centralized IT operations team needs a unified view across network, compute, and storage.
3. Role-based access (user groups and granular roles) provides adequate separation inside one workspace.
4. Compliance does not mandate isolation boundaries.

Example: A manufacturing company runs Compute Ops Management (server lifecycle), Aruba Networking Central (factory network devices), and OpsRamp (monitoring) together in one production workspace plus a separate pre-production workspace for configuration testing.

When to Separate Services into Multiple Workspaces

Use more workspaces when:

1. Regulations (HIPAA, PCI DSS, GDPR) require strict data or system isolation.
2. High-risk operations (payment processing) must be shielded from lower-risk testing activities.
3. High-volume services (large-scale network monitoring) could consume rate limits and impact other operations.
4. Independent business units or regions need autonomy with minimal central coordination.

Example: A healthcare provider isolates patient record storage (PHI) in one workspace while operating general infrastructure monitoring and network management in separate workspaces for compliance and risk containment.

Decision Framework

Balanced Approach

Most architectures combine all three patterns:

• Consolidate integrated operational services (network + compute + monitoring) for shared workflows.
• Separate by environment (pre-production vs production) for safer change management.
• Isolate compliance-sensitive or high-risk operations (payment, health records) for audit and security.

Enterprise example: A financial services company consolidates Compute Ops, Aruba Networking, and OpsRamp for production monitoring in one member workspace, but maintains distinct pre-production and payment processing member workspaces to protect change velocity and PCI DSS compliance.

MSP example: An MSP creates tenant workspaces for each managed customer environment.

The following design principles help you apply consolidation and separation strategies effectively within your organizational context.

Design Principles for Enterprise Workspace Architecture

Apply these principles when planning your enterprise hierarchy:

• Balance integration and isolation: Consolidate when workflows span services; separate when security, compliance, or blast radius demands boundaries.
• Design for controls, not reporting lines: Base grouping on shared policies and operational processes, not org charts.
• Separate governance from execution: Keep domains, SSO, SCIM, and user lifecycle in the Enterprise Organization Management Workspace; run services in member workspaces.
• Grow incrementally: Start minimal; add member workspaces only for environment or policy boundaries.
• Centralize identity governance: Use the shared directory with SSO and SCIM to maintain consistent authentication and user provisioning across all member workspaces.
• Isolate sensitive/high-risk services: Dedicate member workspaces for regulated data or elevated risk activities to reduce exposure.
• Distribute quotas and rate limits: Place high-volume services in separate member workspaces to avoid contention.

This page describes workspace architecture patterns. It explains when to use enterprise versus MSP hierarchies, and shows how services fit into each pattern.

Workspace Architecture Patterns at a Glance

This table provides a quick reference for understanding workspace capabilities and when to use each pattern.

Workspace Foundations

HPE GreenLake offers three primary workspace patterns: standalone workspaces for getting started, enterprise organizations for centralized identity governance, and MSP hierarchies for managed service provider scenarios. Each pattern serves different operational needs and scales differently as your environment grows.

Standalone Workspace

Best for: Getting started and exploring HPE GreenLake features.

A standalone workspace is the typical starting point. It provides a baseline access boundary where you can assign access to users from non-SSO HPE MyAccount users and begin using services from the catalog. The workspace illustrated here shows the core building blocks available in a standalone configuration.

For individuals and small businesses, a single workspace may be sufficient. As organizations grow, HPE recommends adopting a multi-workspace strategy with identity governance to accommodate diverse teams, varying security requirements, and distinct business processes.

Key Capabilities

• Self-service creation using an HPE MyAccount user (no SSO required)
• Local administrators manage access with scoped role assignments
• Full service catalog access
• No parent or child relationships
• Can join an existing enterprise organization
• Can become the parent of a new organization hierarchy (when no services are provisioned)
• Can be transferred to MSP management (if only MSP-compatible services are provisioned)

Organization Management Enabled Workspace

When you enable enterprise capabilities on a standalone workspace, it becomes an Enterprise Organization Management Workspace with enhanced identity and access management (IAM) features. For MSP workspaces, these capabilities are automatically enabled when the MSP workspace is created. These capabilities help you centrally manage and govern your environment as it grows.

The organization management model illustrated here enables centralized identity governance. See Hierarchy Patterns below for details on enterprise and MSP organization models.

Enhanced IAM Capabilities

• Single Sign-On (SSO) for centralized authentication
• Identity directory with users and groups
• User and group lifecycle governance

Learn more: Identity Governance Essentials

Hierarchy Patterns

Organization management powers both enterprise and MSP hierarchies. The conceptual illustration below shows how these patterns differ:

• Enterprise hierarchy: Single Enterprise Organization Management Workspace with shared identity directory serving multiple member workspaces with delegated access management
• MSP hierarchy: MSP Workspace managing multiple distinct tenant workspaces, each with its own organization identity directory, which provides separation of tenant users and groups

Understanding Organizations and Identity Boundaries

In HPE GreenLake, an organization is the fundamental identity boundary. Each organization has its own identity directory containing users and groups, and may configure its own SSO (Single Sign-On) settings. Organizations can also use SCIM (System for Cross-domain Identity Management) for automated user provisioning where supported.

This concept aligns with industry identity standards:

• IETF SCIM (RFC 7644): Defines how identity providers provision users to "disjoint sets of resources" (separate organizations). Each SCIM integration uses a unique bearer token to authenticate provisioning requests, ensuring users provisioned through one integration cannot access resources belonging to a different organization.
• OpenID Connect (OIDC): Includes a tid (Tenant ID) claim in authentication tokens to identify which organization (tenant) a user belongs to.

HPE GreenLake organizations map to "tenants" in these standards. Each HPE GreenLake organization has a unique Organization ID (often referenced as hpe_organization_id) that serves the same purpose as a Tenant ID in OIDC or SCIM: it defines an identity boundary with its own identity directory and authentication policies.

Key distinctions in HPE GreenLake:

• Enterprise member workspaces share the parent organization's identity directory. They are not separate organizations—they are operational containers within a single identity boundary. All members inherit the same users, groups, and SSO configuration from the Enterprise Organization Management Workspace. When you view users in any member workspace, they have the same Organization ID because they all belong to the enterprise parent organization.

• MSP tenant workspaces are independent organizations, each with its own Organization ID, identity directory, users, groups, and (optionally) SSO configuration. This structure mirrors the IETF/OIDC tenant model: each MSP tenant is a distinct identity boundary, even though the MSP parent manages them centrally for operational purposes. MSP users assigned roles in tenant workspaces appear as external users within those tenant workspaces—their role assignments are projected from the MSP parent organization into the tenant. This enables MSPs to manage access to tenant resources without adding MSP users directly to each tenant's identity directory.

Example: When an identity provider provisions users via SCIM, it authenticates with a bearer token that establishes the organization context. In an enterprise hierarchy, SCIM provisioning adds users to the shared directory used by the organization management workspace and all member workspaces—all users show the same Organization ID because they belong to one organization. In an MSP hierarchy, the MSP parent organization can be provisioned via SCIM (using its own bearer token and Organization ID). MSP tenant workspaces have their own separate identity directories with distinct Organization IDs, but currently do not support SCIM provisioning. However, tenants can configure their own SSO when allowed by the MSP, maintaining user and group separation between tenants.

The following sections explain each pattern in detail.

Enterprise Organizations

An enterprise organization centralizes identity governance while distributing operational services across member workspaces. This pattern balances central control with delegated service management.

Enterprise Organization Management Workspace

Best for: A single organization with multiple distinct management environments (workspaces) requiring centralized identity governance with delegated operations and access management.

An enterprise organization management workspace owns the organization hierarchy and maintains the shared identity directory for all member workspaces. The illustration shows how the Enterprise Organization Management Workspace provides identity services while members host operational services.

The organization management workspace is not intended to be used for operating your services directly. Instead, its member workspaces are typically used to provision and operate your services.

Enterprise Organization Management Capabilities

• Provides identity governance for claimed domains
• Single Sign-On (SSO) configuration for centralized authentication
• Identity Lifecycle governance via SCIM
• Hosts the shared identity directory for all member workspaces (users, groups)
• Requires at least one member workspace to run most services

Enterprise Member Workspaces

Best for: Production, non-production, or specialized services requiring centralized identity with independent service management.

Enterprise member workspaces inherit identity from the Enterprise Organization Management Workspace while maintaining independent service operations. This separation enables you to isolate environments (production vs. non-production) or separate service domains (network vs. compute) or compliance requirements (PCI vs General Corporate IT Ops) while preserving unified user management.

Enterprise Member Capabilities

• Inherit SSO authentication, users, and groups from the shared directory in the Enterprise Organization Management Workspace
• Maintain independent workspace administrators and service provisioning
• Workspace administrators control granular authorization through role assignments to organization users and groups

MSP Hierarchy

Managed Service Provider (MSP) hierarchies centralize governance for many tenant environments while preserving isolation between them. Unlike enterprise members that share a single parent identity directory, each MSP tenant maintains its own organization boundary, identity directory, and optional SSO integrations (SCIM is not currently available for MSP tenants). The MSP parent decides whether to manage identity controls centrally or delegate configuration of some or all controls to each tenant, enabling fully managed and co-managed delivery models.

MSP Workspace

Best for: Service providers managing multiple customer environments at scale with standardized configurations and controlled IAM delegation.

An MSP parent workspace controls tenant onboarding and service enablement. The MSP retains visibility into all MSP-managed services while tenants can provision only the services and regions the parent authorizes.

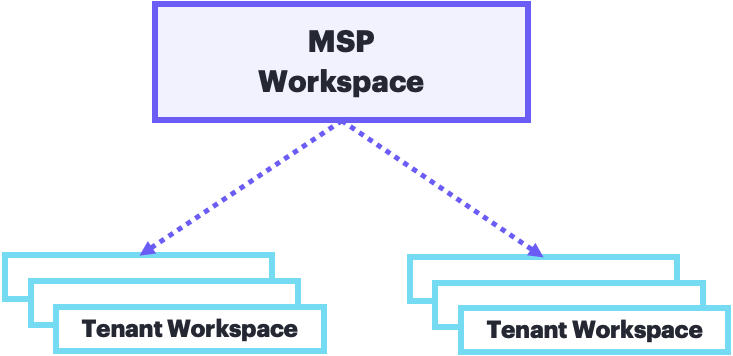

The illustration shows the MSP maintaining its own identity directory while managing multiple tenants, each with their own separate organization directories for their distinct users and groups.

MSPs have flexible delegation options. They can fully centralize identity and access management across all customers, or delegate specific controls (SSO, SCIM configuration) to tenant administrators based on service delivery models. Many large MSPs choose full centralization: they use SSO-based authorization to control access to both parent and tenant workspaces without granting tenants any direct delegation capabilities.

Example: A telecommunications provider manages wireless networks for hundreds of businesses. Each business receives its own managed tenant. Fully managed offerings keep all access within the MSP; co-managed offerings let tenants configure SSO for their users under MSP-defined guardrails.

MSP Capabilities

• Controls onboarding, service enablement, and IAM delegation for all tenants
• Manages operational functions: device assignment, asset management, network profile configuration, alert monitoring across tenants
• Maintains its own identity directory (separate from tenant directories)
• Hosts aggregation and reporting services; operational services run in tenants
• Authorizes which services and regions each tenant can access

MSP Tenant Workspaces

Best for: Customer environments requiring independent identity directories with MSP oversight and service restrictions.

Each MSP tenant is an organization workspace with its own identity directory. However, unlike other organization types, MSP tenants cannot create sub-tenant workspaces of their own. They can, however, use user groups and access controls to subdivide access within the tenant like any other workspace. The MSP determines how much operational control to delegate through scoped roles and permissions.

The detailed tenant structure illustrated here shows how each tenant maintains independence (separate organization ID, directory, and users) while operating within MSP-defined boundaries.

HPE GreenLake separates identity governance roles from workspace administrator roles to preserve separation of duties. MSPs can retain full access control, allow tenants to configure their own SSO, or grant limited permissions for co-managed operations.

MSP Tenant Inventory Ownership Modes

MSPs can use two different modes of inventory ownership with their tenants, each serving different operational models:

MSP Owned Inventory (MSP-owned mode): The MSP owns the devices, subscriptions, and workspace, managing all operations on behalf of the customer. This model suits fully managed service offerings where the MSP provides complete infrastructure and operations.

Tenant Owned Inventory (tenant-owned mode): The customer owns their devices and subscriptions, but the MSP manages the workspace and provides operational support. This model enables co-managed scenarios where customers retain asset ownership while leveraging MSP expertise for platform management.

MSP Tenant Capabilities

• Distinct organization ID and identity directory (even when centrally managed by the MSP)
• Can configure SSO when allowed by the MSP (SCIM not supported for MSP tenants)
• Can provision only services and regions authorized by the MSP
• Tenant Workspace administrators manage access to services and resources
• Cannot create sub-tenant workspaces of their own

Comparing Enterprise and MSP Organization Hierarchies

The table below highlights the key differences between Enterprise and MSP organization hierarchies:

Service Compatibility and Workspace Placement

Understanding which services run in which workspace types prevents provisioning failures and architectural mismatches.

Service Categories

Different service categories have different workspace requirements:

How Service Compatibility Works

The service catalog automatically shows only services compatible with your current workspace configuration. If a service requires a specific hierarchy (enterprise organization management or MSP), it appears in the catalog only when you access a compatible workspace type.

Example: Enterprise aggregation services appear in member workspaces within an enterprise organization hierarchy, but do not appear in standalone workspaces or MSP tenant workspaces.

Planning Guidance

Follow these guidelines when planning your workspace architecture:

• Starting out? Use standalone workspaces for initial exploration. Most core services work in standalone mode.
• Need organization-wide features? Adopt the enterprise hierarchy (Enterprise Organization Management Workspace + members) to unlock aggregation and centralized identity.
• Managing customer environments with standardized configuration or SLAs? Use the MSP hierarchy for supported MSP services and tenant isolation.

Choosing the Right Layout

Select the workspace pattern that matches your operational needs:

Enterprise hierarchy when you need centralized SSO and user lifecycle governance across multiple environments with delegated workspace management. Run your services in enterprise member workspaces.

MSP hierarchy when you need to centrally manage customer environments with standardized configuration or SLAs and strong isolation between them.

Standalone workspace when you're experimenting with GreenLake or running a single service in a small environment without SSO. Expand to an organization hierarchy when governance needs grow.

Workspace Feature Comparison

The table below provides a detailed comparison of capabilities across workspace usage models to help you make informed architecture decisions.

Understanding Identity Architecture:

• Enterprise Members share the parent's identity directory—all users, groups, and SSO settings come from the Enterprise Organization Management Workspace
• MSP Tenants have their own separate identity directories—each tenant is an independent organization with its own users and groups

Legend: ✅ = Available | 🔵 = Optional or Conditional | ⬆️ = Inherited from Parent | ❌ = Not Available | N/A = Not Applicable

Continue to Identity Governance Essentials for details on how SSO, SCIM, and role assignment work in each hierarchy.
